55L Capacity Rubber Kneader Machine with 140° Tilting Angle and Water Cooling for Automatic Rubber Mixing

Brand Name : Beishun

Model Number : X(S)N-55×30

Certification : ISO/CE

Place of Origin : Qingdao

MOQ : 1set

Price : Negotiable

Payment Terms : T/T,L/C

Supply Ability : 30sets

Delivery Time : 40day

Packaging Details : Wooden box/20GP/40GP

Operation Mode : Manual/Semi-automatic/full-Automatic

Cooling Method : Water Cooling

Type : Kneader Machine

Rotor : Chromeplate or Hard-Alloy Welding

Service : OEM ODM buyer label

Batch Time : 5-10minutes

Usage : Rubber Product

Colour : customized

Speed : 0-40rpm

Voltage : 380V/415 or customized

Machine Type : rubber kneader machine

Tilting Angle : 140°

Year : 2020

Technic : Own professional design

Contact Now

55L Tipping Bucket Rubber Internal Mixer for Automatic Compound Rubber Mixing Line
This 55L tipping bucket rubber internal mixer is designed for efficient compound rubber mixing in automated production lines, offering precise control and reliable performance for industrial rubber processing applications.
Key Machine Specifications
  • Capacity: Determines the amount of rubber material processed per batch, with options ranging from 55L to 270L to accommodate various production scales
  • Rotor Speed: Typically operates at 20-100 rpm for optimal mixing efficiency while maintaining temperature control
  • Motor Power: Ranges from tens to hundreds of kilowatts, providing sufficient torque for demanding rubber compounds
  • Working Pressure: Adjustable pressure system (typically 0.6-0.8 MPa) ensures proper fusion of rubber and additives
  • Temperature Control: Maintains precise temperature range of 50-200°C to prevent rubber deterioration and ensure uniform mixing
  • Unloading Method: Features tipping bucket design with 140° tilting angle for efficient material discharge
Technical Specifications
Model X(S)N-75*30 X(S)N-110*30 X(S)N-150*30 X(S)N-200*30
Total volume of mixing chamber (L) 175 250 325 440
Working volume of mixing chamber (L) 75 110 150 200
Main motor power (KW) 110 185 220 280
Tilting motor power (KW) 4.0 5.5 11 11
Tilting angle (°) 140 140 140 140
Rotation speed of rotor (front/rear) (r/min) 30/24.5 30/24.5 30/24.5 30/24.5
Pressure of compressed air (Mpa) 0.6~0.8 0.6~0.8 0.6~0.8 0.6~0.8
Pressure of cooling water (rubber mixing) (Mpa) 0.2~0.4 0.2~0.4 0.2~0.4 0.2~0.4
Pressure of heating vapor (plastic mixing) (Mpa) 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8
Overall size (mm) 3760*2143*3135 4075*2712*3580 4200*3400*3900 4250*3400*4215
Common Troubleshooting Solutions
Main motor fails to start after shutdown: Check travel switches and electrical circuits for proper closure and functionality.
Roller continues rotating after emergency braking: Inspect brake belt wear and replace if necessary to restore proper braking torque.
Abnormal roller bearing temperature rise: Verify lubrication system operation and clear any oil flow obstructions.
Abnormal reducer bearing temperature: Check oil flow indicators, filter cleanliness, and cooling water circulation.
Unusual reducer operating sounds: Test lubricating oil purity and inspect gears or bearings for proper operation.
Roller vibration during operation: Examine coupling transmission components and verify roller bearing clearance specifications.
Excessive roller surface temperature: Inspect cooling water inlet/return systems and clear any rust from internal pipes.
Daily Maintenance Guidelines
  • Regularly inspect component accuracy and adjust if installation errors exceed specifications
  • Implement gradual heating and cooling procedures to prevent thermal shock damage
  • Monitor lubricating oil quality and maintain proper lubrication at all points
  • Avoid using emergency brake during normal shutdown to minimize brake belt wear
  • Prevent load-starting operations to avoid mechanical impact damage
  • Apply anti-rust oil to roller surfaces during extended shutdown periods
Equipment Images

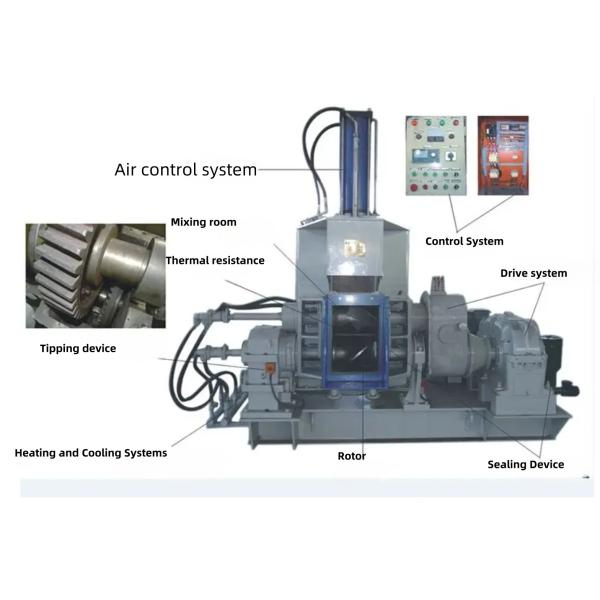

55L Capacity Rubber Kneader Machine with 140° Tilting Angle and Water Cooling for Automatic Rubber Mixing 55L Capacity Rubber Kneader Machine with 140° Tilting Angle and Water Cooling for Automatic Rubber Mixing 55L Capacity Rubber Kneader Machine with 140° Tilting Angle and Water Cooling for Automatic Rubber Mixing 55L Capacity Rubber Kneader Machine with 140° Tilting Angle and Water Cooling for Automatic Rubber Mixing
